Three systems down in one garage, three different problems
A Downtown LA restaurant had all three of its HVAC condensers hanging near the ceiling of an underground garage, and none of them running.
In this guide
The call from this restaurant in Downtown Los Angeles wasn’t about one broken air conditioner. Three HVAC systems were out of service at the same time.
All three condenser units hang near the ceiling of an underground garage. It gets extremely hot up there, with almost no ventilation, and a condenser’s whole job is dumping heat into the air around it. When that air is already baking, the equipment works harder than it was designed to.
Three separate faults
Three systems down at once sounds like a single cause. It wasn’t. Each unit had its own separate failure, and each needed its own repair. That’s worth knowing before anyone quotes you one big fix for all three.
The full drain pan
The first system’s secondary drain pan was full of water. That pan is the backup: it sits under the unit and takes whatever the primary pan and its drain can’t carry away, so a full pan is a report about the drain line. The line had quit doing its job, and putting the drain right is what returned this unit to service.
The fan that wouldn’t always start
The second system had a failed capacitor. A capacitor stores the electrical kick that gets the fan motor spinning, and when it dies, the condenser fan may start on one try and refuse on the next. That’s exactly what this fan was doing. A capacitor can’t be rebuilt, so a new one went in.
Following the oil

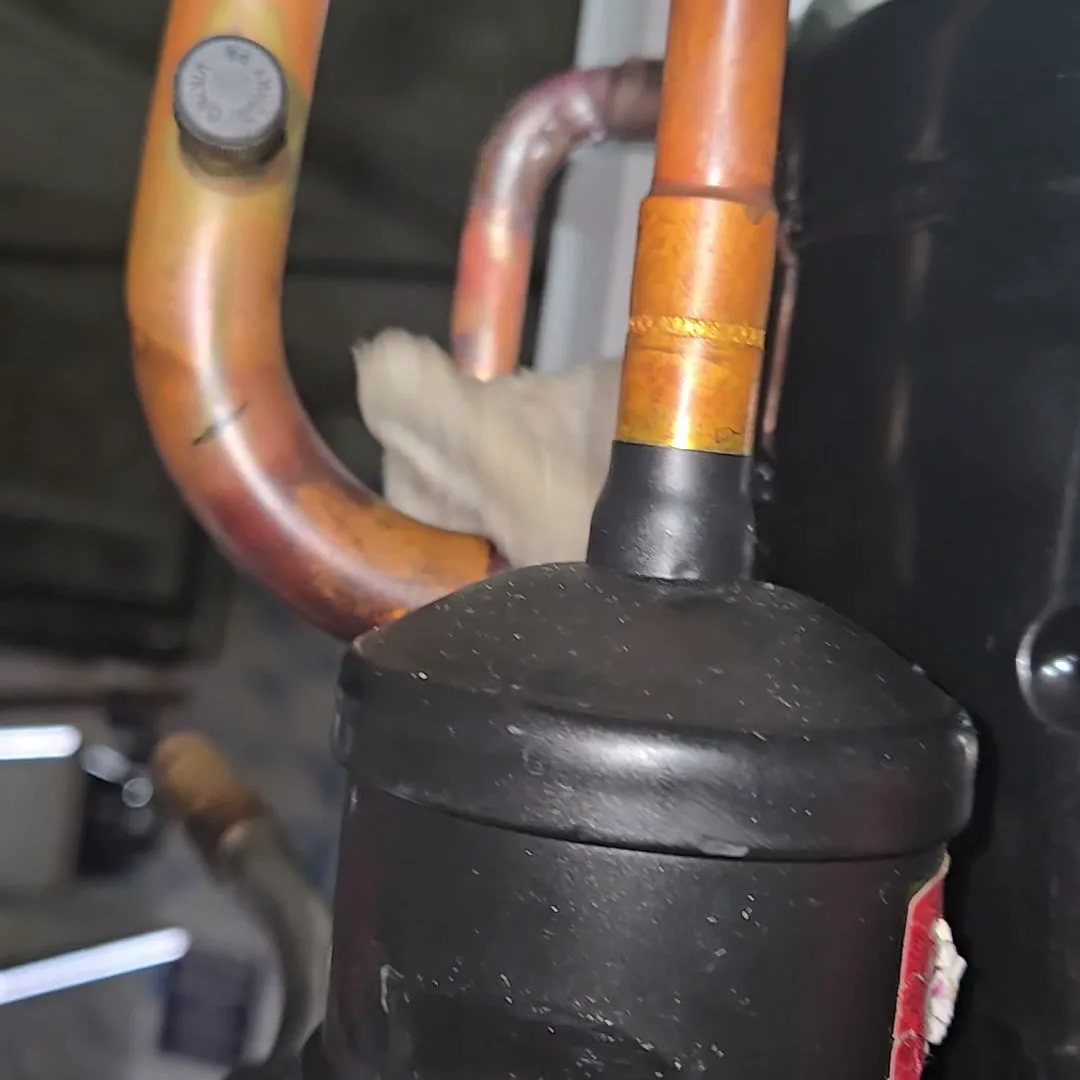

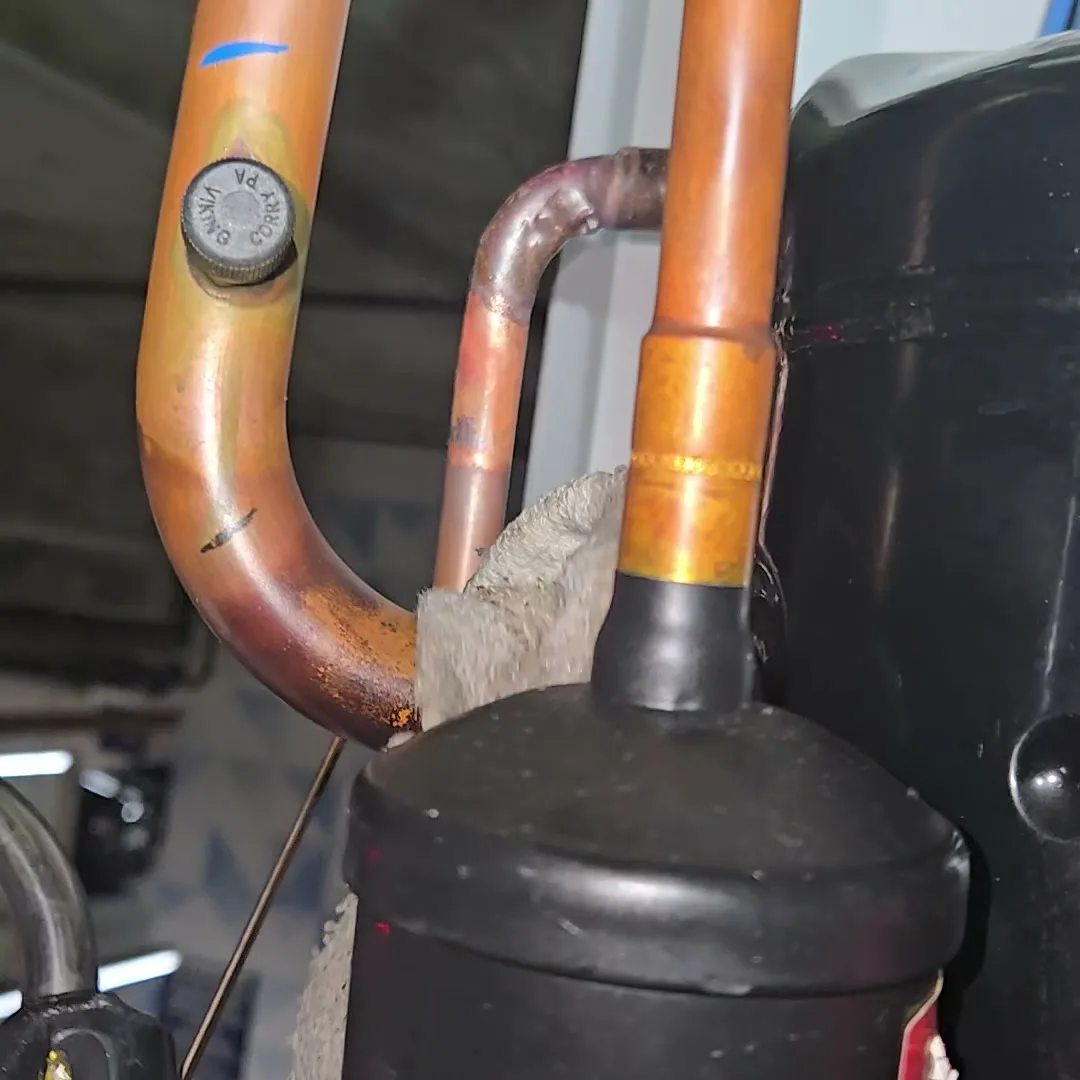

The third system had lost refrigerant. Refrigerant circulates with a small amount of oil, and gas escaping through a crack drags oil out with it, leaving a residue you can spot. Around one copper bend, there it was. The electronic leak detector confirmed what the oil suggested, and I brazed the cracked tubing to close the leak.
Back up and running
Three systems, three different problems, and all three running again. For a restaurant that’s the difference between a normal service and a dining room nobody wants to sit in.
If your building keeps its condensers in a garage or another hot, closed space, they’re working against their surroundings the whole time they run. A look at the drains, the capacitors and the refrigerant charge costs far less than three systems down at once.
We repair commercial HVAC and kitchen equipment across Los Angeles alongside our appliance work. Flat rate upfront, and the $85 service call is credited toward the repair. Call or text (213) 205-2055.
FAQ
Why would three HVAC systems fail at the same restaurant?
Each one had its own fault: a drain-line problem, a failed capacitor and a refrigerant leak. What they shared was the location. All three condensers are mounted near the ceiling of an underground garage that runs extremely hot with almost no ventilation, and equipment working that hard tends to show problems sooner.
What does it mean when the secondary drain pan is full of water?
The pan is a backup that takes whatever the primary pan and its drain didn't carry away, so a full pan points to a drain-line problem upstream. Emptying the pan without fixing the line just resets the clock. On this system the drain line was the repair.
What does a capacitor do in an AC condenser?
It stores the electrical kick that gets the fan motor spinning. When a capacitor fails, the condenser fan may start on one try and refuse on the next, which is exactly how this unit behaved. The part isn't rebuildable; a failed capacitor gets replaced.
How do you find a refrigerant leak?
Refrigerant carries a small amount of oil, so escaping gas leaves an oily residue at the crack. On this system the residue sat around one copper bend, and an electronic leak detector confirmed the spot before any repair started.
Can a cracked refrigerant line be repaired, or does it need replacing?
A cracked section of copper tubing can often be brazed, which closes the crack with metal filler at high heat. That's the repair this system got, and it held. Whether brazing or replacement makes sense depends on where the damage sits and the condition of the line around it.
Is a garage a bad place for HVAC condensers?
A condenser needs to release its heat into the surrounding air, so a hot, unventilated garage is about the hardest place to ask it to work. Sometimes it's the only space a building has. If that's your setup, the equipment earns a checkup more often than a rooftop unit would.
Do you repair commercial HVAC in Downtown Los Angeles?
Yes. This job was at a Downtown LA restaurant, and we work across the Westside, Hollywood and the San Fernando Valley alongside our appliance repair. CA BEAR registered (#A 50636), EPA 608 Universal certified and $1M insured. Call or text (213) 205-2055.
