KitchenAid Dishwasher Fills and Drains but Won't Spray: Circulation Pump Seized by Detergent Pods

The complaint: it runs, but nothing gets clean

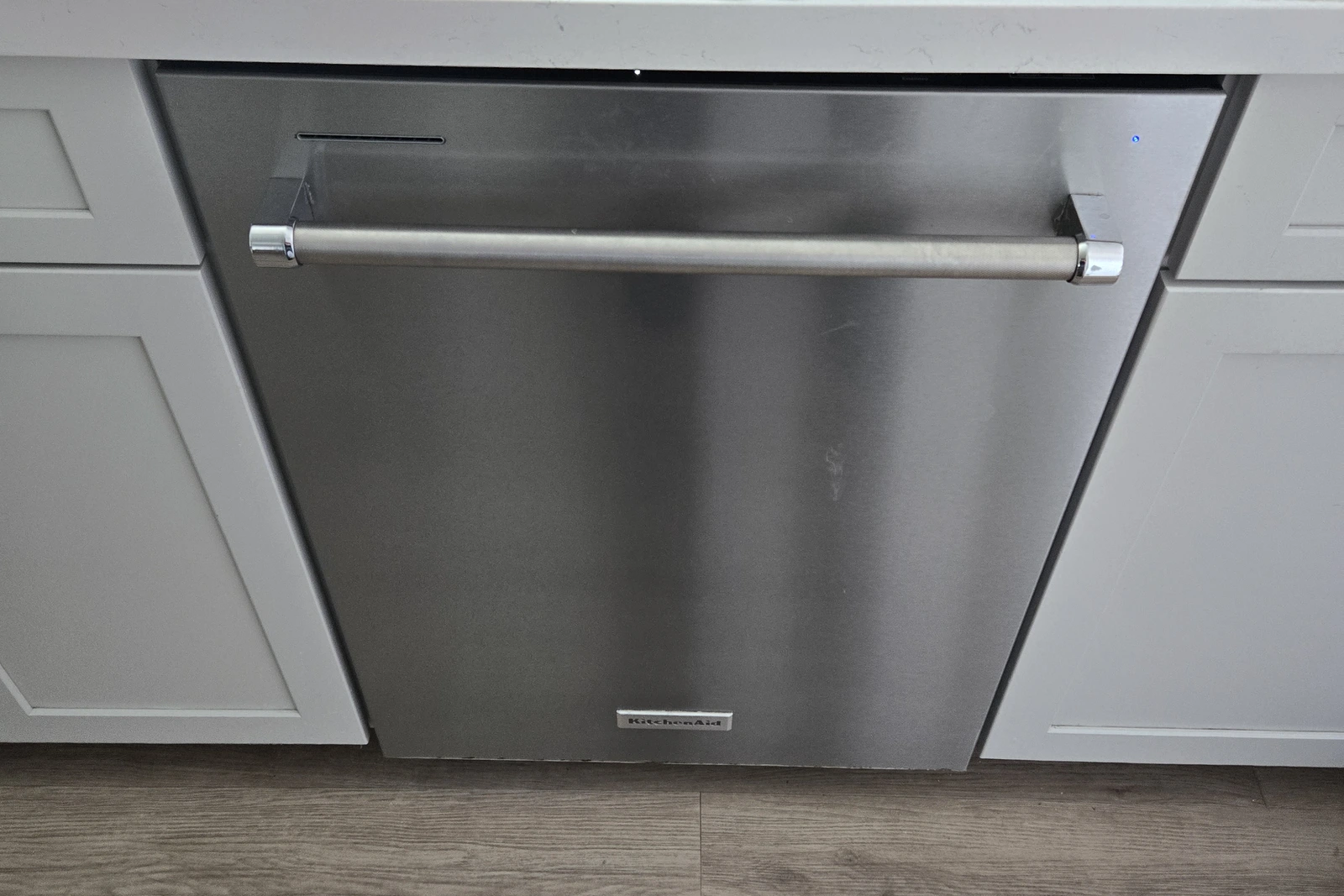

The family called about a KitchenAid dishwasher that was going through the motions. It filled with water, it drained, the cycle finished on time. But the dishes came out exactly as dirty as they went in, and if you opened the door mid-cycle the spray arms were sitting still. No water was moving inside the tub.

That combination points straight at the circulation pump. The fill valve and the drain pump were doing their jobs. The part that pushes water up through the spray arms was not.

Hums, but won’t spin

I pulled the dishwasher out from under the counter to get at the pump, which sits low under the tub. With the cycle started, the pump motor hummed. It was getting power and trying to run, but the impeller was not turning. A motor that hums without spinning is usually either a dead winding or something physically stopping it.

On the back of this motor there is a small access hole. You can put a Torx bit in there and turn the shaft by hand. It turned, but it was very hard to move, like something was dragging on it the whole way around. That ruled out a dead motor and pointed at a jam inside the pump housing.

Why I took it apart instead of replacing it

On this model the circulation pump does not come as a small part. It comes as a big assembly, the pump plus the motor plus a pile of parts around it, and the price reflects that. Before quoting a customer for that, it made sense to open the housing and see what was actually in there. If the impeller or the motor was damaged, the assembly would be the answer. If it was just blocked, cleaning would be a fraction of the cost.

What was inside: detergent, and a lot of it

The housing was packed with detergent. Not a thin film, but caked powder filling the space around the impeller, enough that it had locked the whole thing up. The family uses the pods with a dissolvable film on the outside and powder inside. The film goes away in hot water, but the powder inside was not dissolving all the way, and every cycle left a little more of it behind. Over time it built up until the pump could not turn.

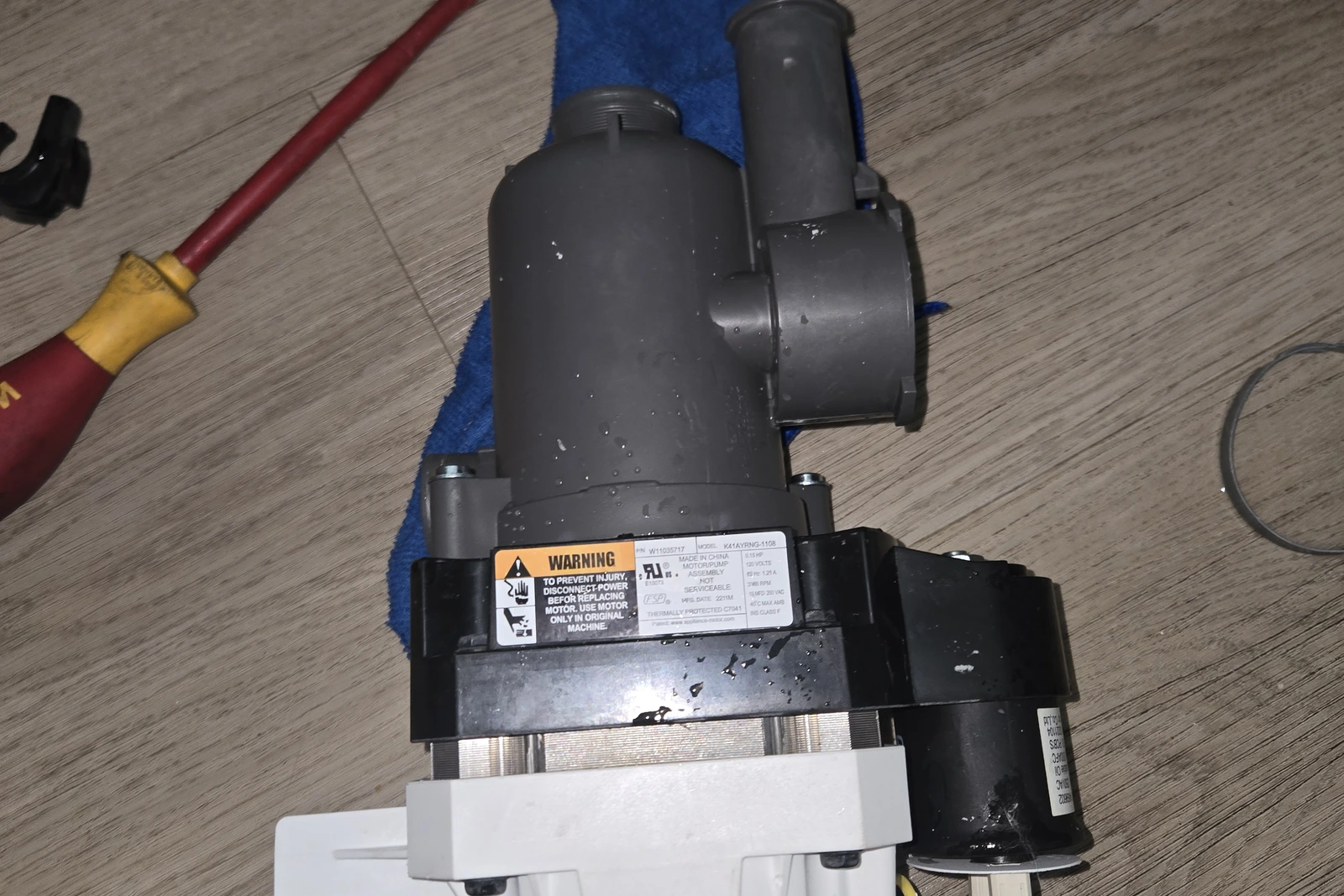

I took the pump outside and hosed it out. Chunks of detergent kept coming out of the housing, and the pile on the ground was bigger than you would expect from a part that size. Once it was clean, the motor spun freely, and the casing and impeller were in good shape.

Putting it back together

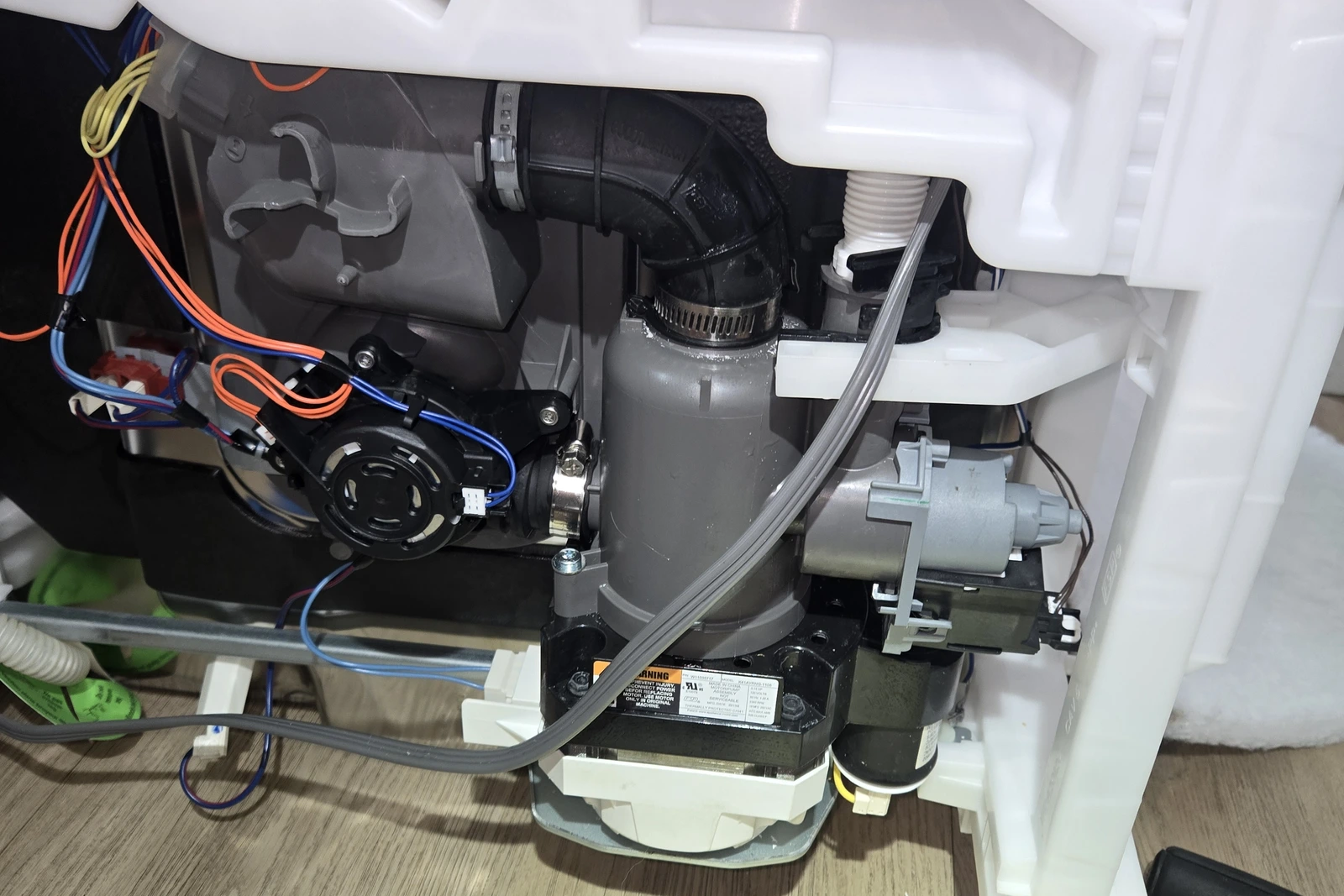

With the pump cleaned, I mounted it back under the tub. The factory hose clamps on these are single-use, so both of them got replaced with new ones rather than reused. The motor had stayed dry through all of this, which was the main thing I wanted to confirm before running it again. The drain pump went back on the side of the sump and the hose snapped into place.

I ran the dishwasher, and the pump was spinning. Water was moving through the spray arms the way it should.

The real fix is the detergent

The pump is fine. The problem will come back if the same pods keep going in. I told the customer to switch to a detergent that dissolves fully, and to stop using the powder-filled pods. That is the whole repair, and it costs nothing.

If your dishwasher fills and drains but the dishes stay dirty, listen for the pump. A hum with no spray is a sign it is worth a look before it becomes a bigger job.
